VION Products
Use this section to explain a set of product features, to link to a series of pages, or to answer common questions about your products.
VION Lighting Options
48v LED Lighting
Our 48V lighting system supports up to 300 linear feet before requiring a power injection.
36v LED Lighting
Our 36V lighting system supports up to 150 linear feet before requiring a power injection.
FAQs
Spacing
9" between lights
Color
Full spectrum RGB with over 16 million custom color options
Wire
16-gauge 3 wire
Life
Rated for 100,000 hours
Power Usage
Uses less than 1 watt of power at full bright white

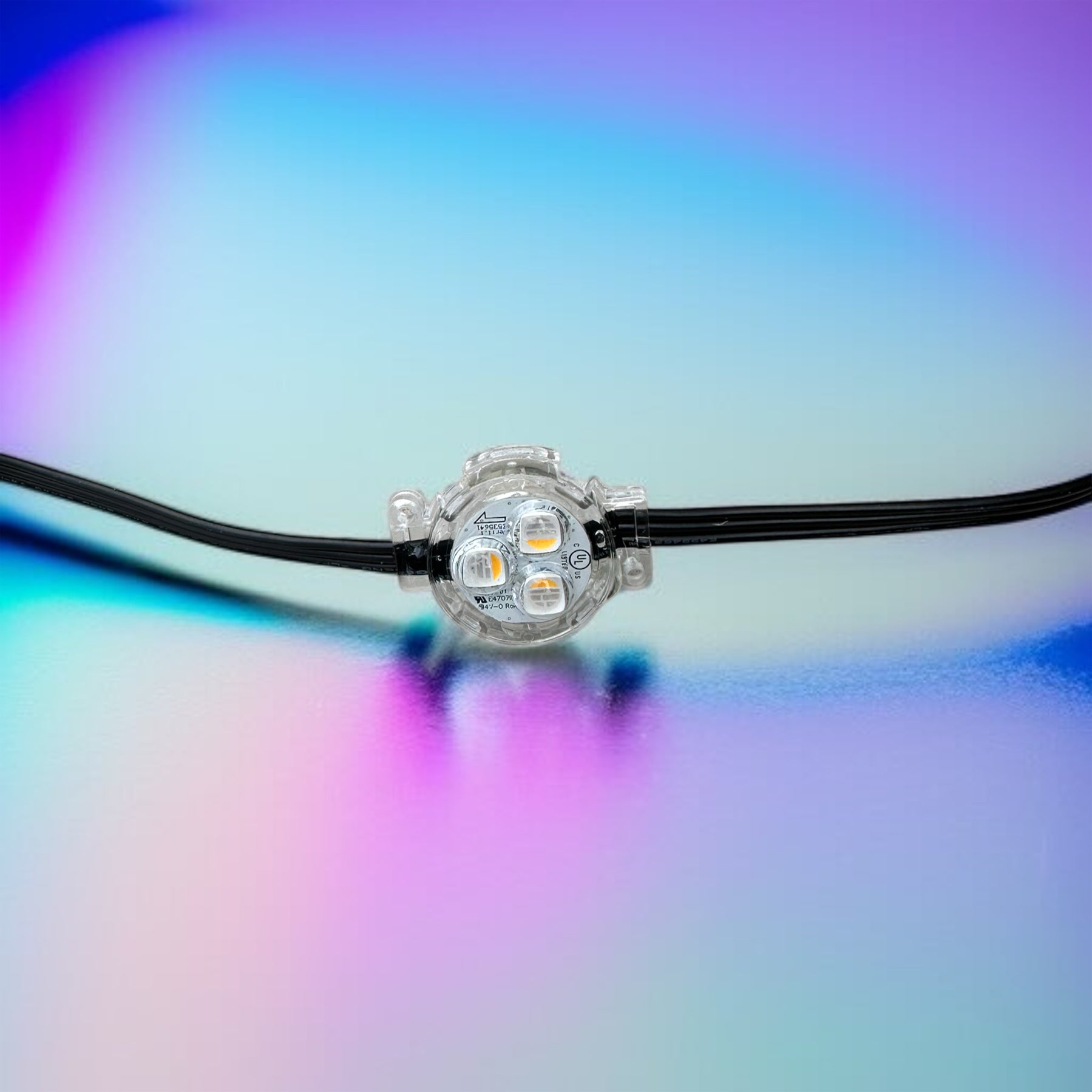

Diodes
6 diodes—double the brightness of the standard 3 you’ll find in most competitors.
Tracking Options

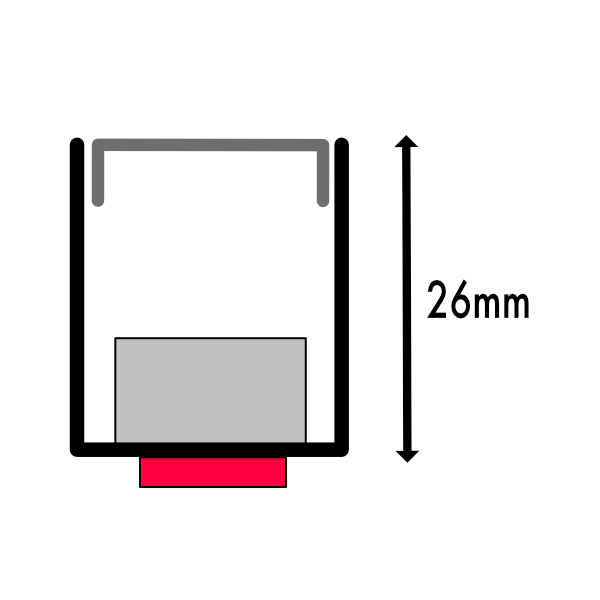

Two Piece Tracking
Our standard two-piece tracking features a baseplate for a sleek, clean look. The tracking measures 26mm, with lights spaced 9 inches apart.

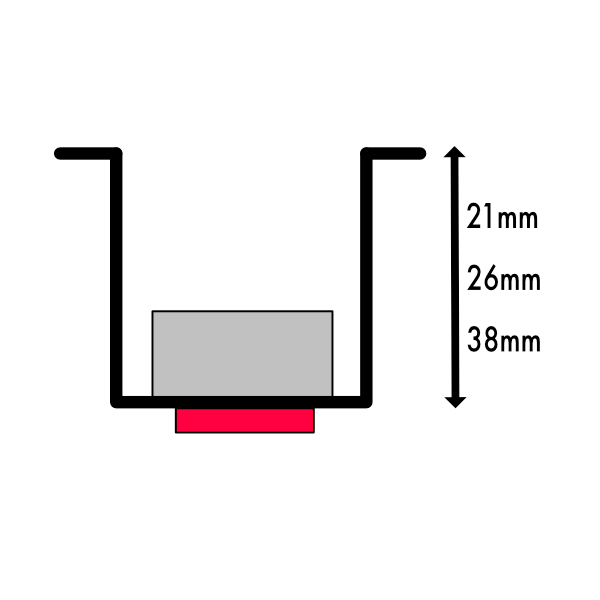

Flange Tracking
Flange tracking makes it easy to mount under flush vinyl soffits or fascia. Available in 21mm, 26mm, and 38mm, with lights spaced 9 inches apart.

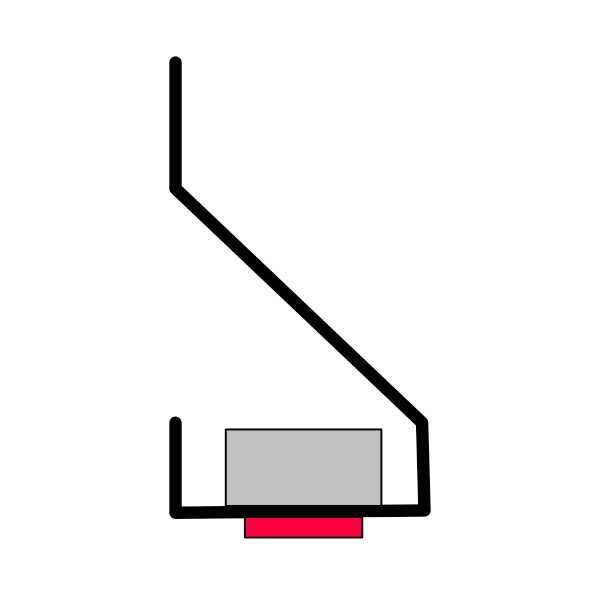

Z Flashing
Z Flashing enables mounting along rooflines with little to no soffit, with lights spaced 9 inches apart.
Angled Tracking
Tracking comes with a flange and is mounted at a 20-degree angle, making it perfect for angled soffits. Lights are spaced 9 inches apart.
